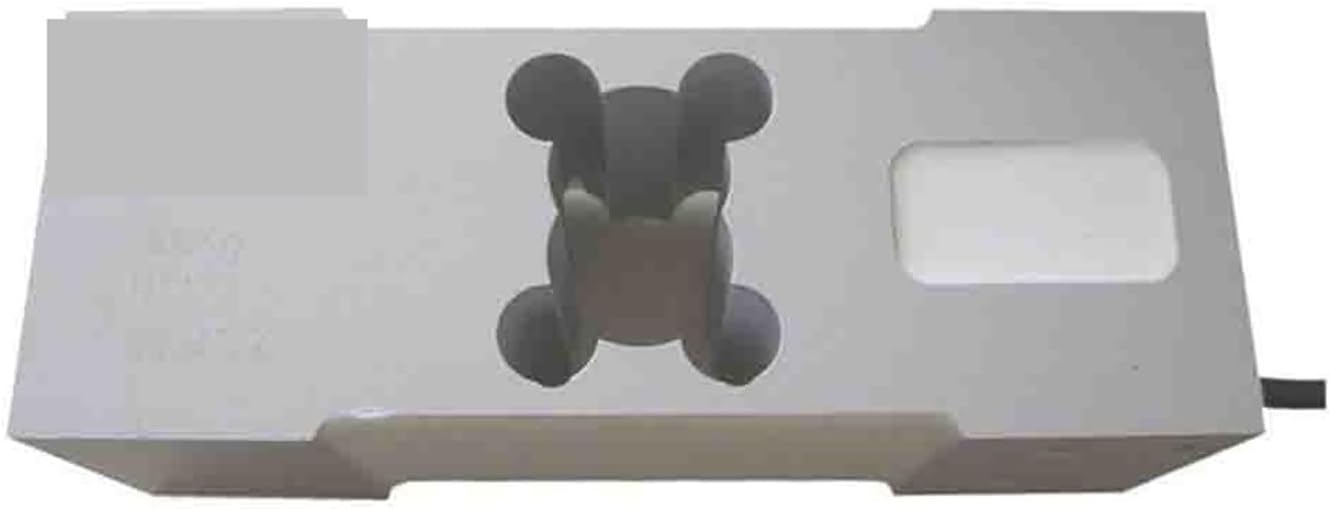

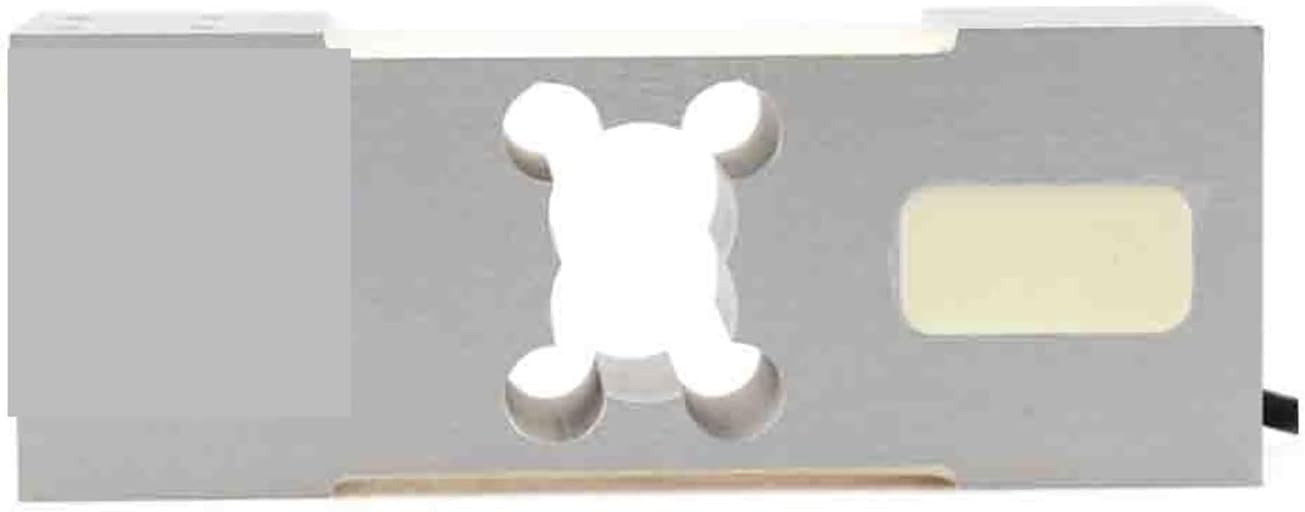

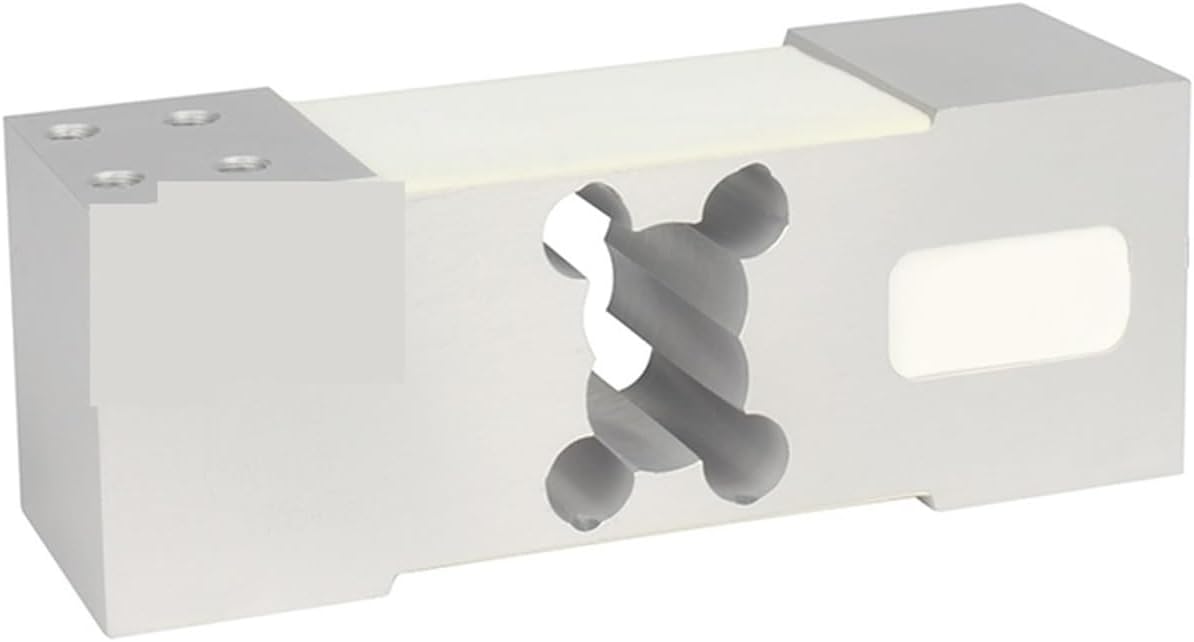

Load Cells, C3 Platform Scale Single Point Parallel Beam Pressure Weighing Sensor Electronic Price Calculation Scale Load Cell(200kg Load) (1 150kg Load)

1 * Load cell Rated capacities: 50/100/150/200/250/300/500/600kg Output resistance: 350±3 Sensitivity: 2.0±0.2mv/v Insulation resistance: 5000M(50VDC) Comprehensive error: ±0.02%F.S Nominal range of excitation voltage: 5-12VDC Creep: ±0.0167%F.S/30min Maximum excitation voltage: 18VDC Temperature effect on sensitivity: ±0.0175%F.S/10 Maximum safe overload: 120%F.S Temperature effect on zero balance: ±0.02%F.S/10 Ultimate overload: 150%F.S Zero output: ±2%F.S Compensated temp. range: -10~40 Installation torque recommended: 20N.m Operation temp. Range: -35~65 Max. platform size: 600*600mm Input resistance: 406±6 Dimension: 174*60*65mm Wiring schematic diagram: Exc+(red),Exc-(Black);Sig+(green),Sig-(white);Sense+(blue),Sense-(yellow) Type : Load Cell MaterialProduct specifications Rated : aluminum alloy Accuracy class : C3 Rated capacities : 50kg-500kg sensor type 1 : Weighing Sensor sensor type 2 : Electronic Scale sensor type 3 : Electronic Load Cell sensor type 5 : Platform Scale sensor type 6 : Parallel Beam Weight Sensor sensor type 7 : Load cell Type of installation : One end is fixed and one end is forced

• This sensor Features high precision, high sensitivity, high stability in use
• This sensor is an indispensable core component in power equipment, construction machinery, various types of workhorses and industrial automation systems
• Aluminum alloy material,Surface anodization
• Used in various force measurement and industrial measurement control systems
• This product is suitable for Various electronic weighing equipment such as electronic pricing scales, electronic platform scales, etc.
